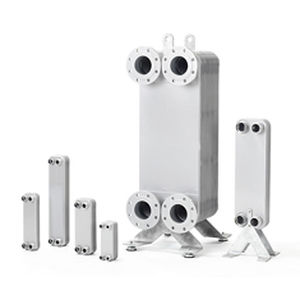

Brazed plate heat exchanger

liquid/liquidstainless steelcopper

Teralba Industries brazed plate heat exchangers compliment our range of Coilflo® designs. These units are individually selected and then quoted from our range of standard stocked units. The brazed plates are compact, rugged and cost effective, capable of withstanding high pressures and suitable for direct expanding refrigerants, heating and cooling service fluids. For extreme heat transmission jobs, a brazed plate heat exchanger can provide a strong and efficient solution. The high heat transmission comes from the plate pattern, a number of thin, acid-resistant plates assembled as a unit. Patterns etched into the plates are rotated 180° on each alternate plate, which is designed to create a turbulent flow whilst maintaining low pressure drops. The strong turbulence prevents or minimizes blockages in the heat exchanger. This system effectively provides the highest thermal efficiency in the most compact design available. The plate pack, assembled with two end plates and connections, is vacuum brazed at extremely high temperatures providing a permanently sealed heat exchanger. The units are built from 316 grade stainless steel with copper brazing plates, hence they provide exceptional corrosion resistance. Applications - Heating water for process. - Cooling hydraulic oils using water. - And other water to water and liquid to liquid heat transfer applications. Features: - Large selection of models and connection sizes. - Compact in design. - High performance ratings - Corrosion resistance - Quick and easy installation
