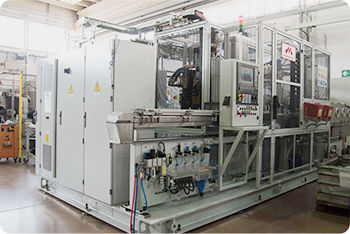

Automatic hardening machine

INSTALLATION FOR HARDENING AND TEMPERING OF BEARINGS Automatic high production machine for hardening and tempering of Inner Ring bearings, Outer Ring, Hub, by rotating table. Load / unload pieces on conveyor for in-line installation. INSTALLATION FOR HARDENING AND TEMPERING OF BEARINGS Automatic machine for hardening and tempering of different types of bearings with different diameters. The system is able to treat Inner Ring, Outer Ring, Hub of different diameters and thicknesses. The loading / unloading conveyor allows the installation of the system in-line, where high production is required. It is installed a final washing / drying station with dedicated liquid. The plant is totally built on a base with an electro-welded steel structure. All the panels, pipes and the quench tank are made of stainless steel. Electrical CNC components and operator panel by SIEMENS. Integrated treatment Parameter Control System. Teleservice for assistance and remote support. Treatment of bearings with diameters up to 140mm. height 120mm. Generators total power of 300Kw Hardening depth up to 4mm with different treatment profiles Dimensional control systems before treatment Set-up for type change in a few minutes Recipes with parameterized programming
