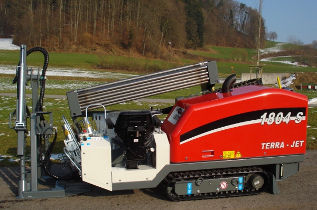

Horizontal directional drilling rig 4 - 6 t | TJ 1804 S

crawlerrotaryhydraulic

For drilling lengths up to 90 – 120 m (300 – 400 ft) and bore channels up to Ø 300 mm (12”) (depending on ground conditions) External mixing & pumping station with 1‘100 ltr (290 gpm) tank pumps the bentonite drilling fluid into the TJ 1804 S Shortest installations time, the bore can start after a few minutes Standard equipped with ADBS (Automatic Drilling and Backreaming System), pat. THRUST and ROTATION are controlled proportionally by one lever (cross lever) A double cylinder („DIRECT RAM“) drives the driving saddle directly and produces the forces for THRUST and BACKREAMING without any loss – robust and powerful Rock drilling possible with TERRA-ROCK Drilling Tools Environmentally friendly. The Diesel engine fulfils today’s Emissions Limits in Europe (EUR 3A) and USA (TIER 4)
