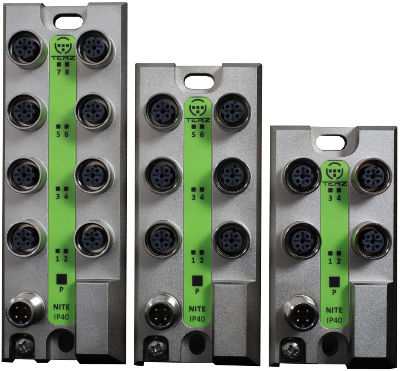

Unmanaged switch NITE-XK series

8 ports4 ports6 ports

NITE-XK - COMPACT INDUSTRIAL ETHERNET SWITCHES M12 IP40 ROBUST, VIBRATION-PROOFED COMMUNICATION IN HARSH ENVIRONMENTS With minimum size and low power consumption, the IP40 Industrial Ethernet switches can be used in harsh industrial environments thanks to the shock and vibration-proofed M12 connection technology. The redundant 24 Volt AC/DC power supply is protected against polarity reversal and works reliably even with undersupply below 10 VDC. The tolerance to voltage dips and the limitation of the inrush current enable a stable operation in all operating conditions. The IP40 variants also meet the requirements for use in trains according to DIN EN 50155 and are also available in two frame forwarding/blocking variants and suitable for PROFINET applications. ultra-compact IP40 metal housing inrush current limitation and polarity protection 10 ms power failure bridging extended temperature range -40 to +70°C 2.25 kVDC Isolation Electronics ⇔ Ethernet Port ⇔ Housing Industrial (PROFINET) and railway compliant DIN EN 50155
