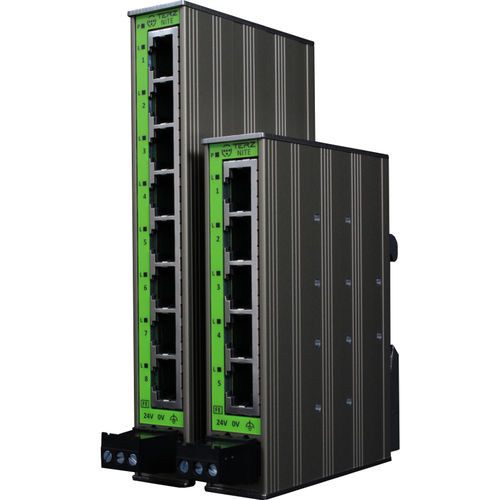

Unmanaged switch NITE-RS series

8 ports5 portsProfiNet

NITE-RS – SLIM INDUSTRIAL ETHERNET SWITCHES RJ45 RELIABLE NETWORKING IN THE CONTROL CABINET WITH ONLY 22.5 MM INSTALLATION WIDTH With a width of only 22.5 mm and a mounting depth of 75 mm, the Industrial Ethernet switches impress with their extremely slim and high-quality metal housing. The highly optimized plug and play switches are energy efficient and enable an easy and fast commissioning and mounting on the DIN rail. Designed specifically for industrial and IoT applications, the switches support priority-controlled packet forwarding (Quality of Service) for maximum data communication efficiency. The 24 VAC/VDC power supply with reverse polarity protection and inrush current limiting and the extended temperature range from -40°C to +70°C and a dielectric strength of 2.25 kVDC guarantee safe and reliable operation. The NITE-RS switches require the world's smallest installation space in control cabinets including the power connector. extremely slim IP30 aluminium housing installation width of only 22.5 mm flexible power supply with 24 VAC/VDC extended temperature range -40 to +70°C polarity protection and inrush current limitation PROFINET
