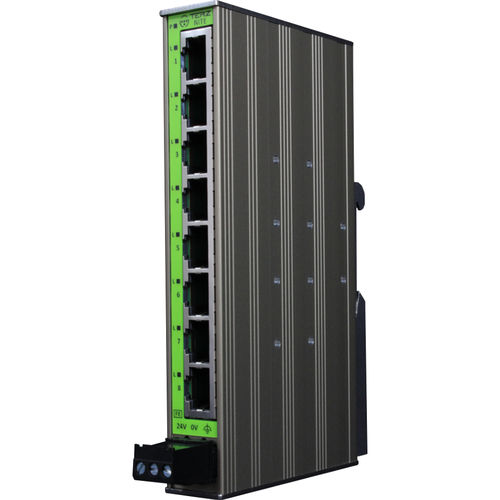

Unmanaged ethernet switch NITE-RS Series

8 portsDIN railRJ45

Unmanaged Industrial Ethernet Switch RJ45 Fast Ethernet Simple, reliable and space-saving networking in the control cabinet With an installation width of just 22.5 mm, the NITE-RS switches impress with their extremely slim and high-quality metal housing. The narrow Industrial Ethernet switches for DIN rail mounting operate extremely energy efficient and reliable. The Plug&Play switches convince with their quick and easy commissioning and enable a cost-effective extension of existing or new network installations. Due to the wide temperature range of -40°C to +70°C, a 24 VAC/VDC power supply with polarity protection and inrush current limitation, the switches can be used in every application. Two frame forwarding variants (LLDP/PTCP) support all applications perfectly and the compatibility for PROFINET networks is given. Flexible use with 24 VAC/VDC IP30 metal housing Minimal installation width 22.5 mm Inrush current limitation Temperature range -40 to +70°C Stable mounting on 35 mm DIN rail Polarity protection PROFINET suitable
