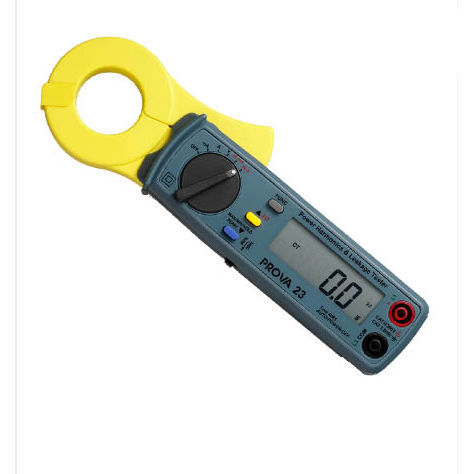

Digital clamp multimeter PROVA seriesportable600 V100 A
Add to favorites
Compare this product
Characteristics
- Display
- digital
- Form
- portable
- Max voltage
- 600 V
- Max current
- 100 A
- Additional features
- harmonic, total harmonic distortion THD, with leakage current measurement
- Other characteristics
- true RMS
- Max AC voltage
600 V
- Max AC current
100 A
- Max frequency measure
65 Hz
- Max AC voltage resolution
0.1 V
- Max AC current resolution
0.1 A
- AC voltage precision
0.5 %, 1.5 %
- AC current precision
0.5 %, 1.5 %
- Process temperature
Max.: 50 °C
(122 °F)Min.: -10 °C
(14 °F)- Length
210 mm
(8.27 in)- Width
62 mm
(2.44 in)- Height
35.6 mm
(1.4 in)- Weight
200 g
(7.05 oz)
Description
• PROVA 21/23: Measurement of balanced 39 power
• PROVA 21/23: Measurement of balanced 3® phase sequence
• PROVA 21/23: Measurement of standby power consumption for IT products
• PROVA 19/21: Shielded Jaw immune to external interference
• Leakage current measurement at 10uA resolution
• Non-interrupted power and harmonic analysis
• Better understanding of high frequency
• harmonics analysis (up to 5/6 KHz)
• Harmonic analysis of V and A (1st~99th order): 1.0% basic accuracy
• Total Harmonic Distortion (%THD-F) and Crest Factor (CF)
• Fast peak function (39ps for 50 Hz, 33us for 60Hz)
• Programmable CT ratio from 1 to 250 Max, Min and data hold functions
• Active power in H.P.
• Auto power off: 30 min.
• 30 mm diameter jaw
• Auto range selection
