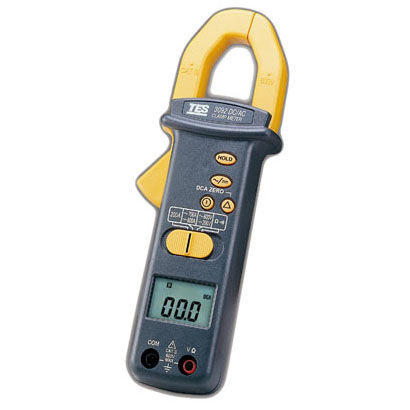

Digital clamp multimeter TES-3092portable600 V800 A
Add to favorites
Compare this product
Characteristics
- Display
- digital
- Form
- portable
- Max voltage
- 600 V
- Max current
- 800 A
- Additional features
- frequency
- Other characteristics
- AC/DC
- Max DC voltage
200 V
- Max AC voltage
600 V
- Max DC current
800 A
- Max AC current
700 A
- Max resistance measure
2 kOhm
- Max DC voltage resolution
0.1 V
- Max AC voltage resolution
1 V
- Max DC current resolution
1 A
- Max AC current resolution
1 A
- Max resistance resolution
1 Ohm
- DC voltage precision
1 %
- AC voltage precision
1.5 %
- DC current precision
1.5 %
- AC current precision
1 %
- Resistance precision
1 %
- Process temperature
Max.: 50 °C
(122 °F)Min.: 0 °C
(32 °F)- Length
192 mm
(7.56 in)- Width
64 mm
(2.52 in)- Height
31 mm
(1.22 in)- Weight
240 g
(8.47 oz)
Description
• Compact Size.
• AC/DC Current Measurement (AC 700A / DC 800A).
• 600 V AC & 200V DC, Ohm / Continuity Beeper.
• One Touch DCA Zero,
