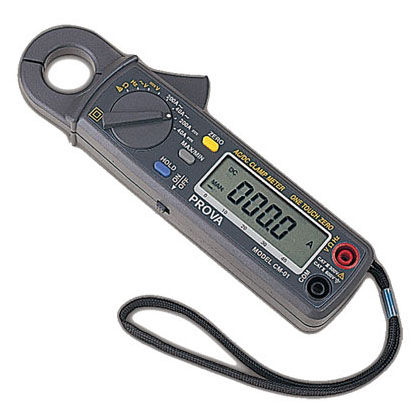

Digital clamp multimeter CM-01portablefrequencyAC/DC
Add to favorites
Compare this product
Characteristics
- Display
- digital
- Form
- portable
- Additional features
- frequency
- Other characteristics
- AC/DC
- Max DC voltage
400 V
- Max AC voltage
400 V
- Max DC current
200 A
- Max AC current
200 A
- Max resistance measure
400 Ohm
- Max frequency measure
100 kHz
- Max DC voltage resolution
0.1 V
- Max AC voltage resolution
0.1 V
- Max DC current resolution
100 mA
- Max AC current resolution
100 mA
- Max resistance resolution
0.1 Ohm
- DC voltage precision
1 %
- AC voltage precision
2 %
- DC current precision
1 %, 2.2 %
- AC current precision
1 %, 1.5 %, 2.2 %, 2.5 %
- Resistance precision
1 %
- Process temperature
Max.: 50 °C
(122 °F)Min.: -10 °C
(14 °F)- Length
183 mm
(7.2 in)- Width
63.6 mm
(2.5 in)- Height
35.6 mm
(1.4 in)- Weight
190 g
(6.7 oz)
Description
• Accurate DC/AC digital clamp meter for current measurement,
• 10mA high resolution on 40A DC/AC range.
• One touch zero for DCA adjustment.
• 23 mm diameter jaw.
• Large 3 3/4 digits LCD
• Fast bargraph display (30 times/sec.) for transient observation.
• Continuity and frequency measurements.
• Max/Min and Data HoId functions.
• 600V overload protection for ohm measurement.
• Easy single rotary switch for any function selection.
• Ideal for works in crowded switch box or cable areas.
