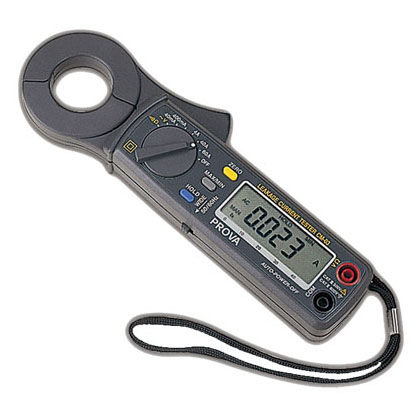

Digital clamp multimeter CM-03
portable60 Awith leakage current measurement

Digital clamp multimeter - CM-03 - TES Electrical Electronic Corp. - portable / 60 A / with leakage current measurement
Digital clamp multimeter - CM-03 - TES Electrical Electronic Corp. - portable / 60 A / with leakage current measurement
Add to favorites
Compare this product

Go to the TES Electrical Electronic Corp. website for more information

Characteristics

Display
digital
Form
portable
Max current
60 A
Additional features
with leakage current measurement
Other characteristics
AC, high-resolution
Max AC voltage

400 V

Max AC current

60 A

Max resistance measure

400 Ohm

Max AC voltage resolution

0.1 V

Max AC current resolution

100 mA

Max resistance resolution

0.1 Ohm

AC voltage precision

1.5 %, 2 %

AC current precision

1 %, 1.5 %, 3 %, 3.5 %

Resistance precision

1 %

Process temperature

Min.: -10 °C
(14 °F)

Max.: 50 °C
(122 °F)

Length

210 mm
(8.27 in)

Width

62 mm
(2.44 in)

Height

35.6 mm
(1.4 in)

Weight

200 g
(7.05 oz)

Description

• Shield transformer jaws to minimize the effect of extemal stray magnetic field. • Large jaw with 30 mm diameter. • ACA Five Ranges (4OmA, 400mA, 4A, 40A, 60A) for all application. • A filter circuit is designed to eliminate the effect of high frequency noise and harmonics for AC current measurement. • Large 3 3/4 digits LCD • Fast bargraph display (30 times/sec.) for transient observation. • Continuity and Frequency measurements. • Max/Min, Data Hold Functions, and Relative Measurement • Easy single rotary switch for any function selection • 600V overload protection for ohm measurement
