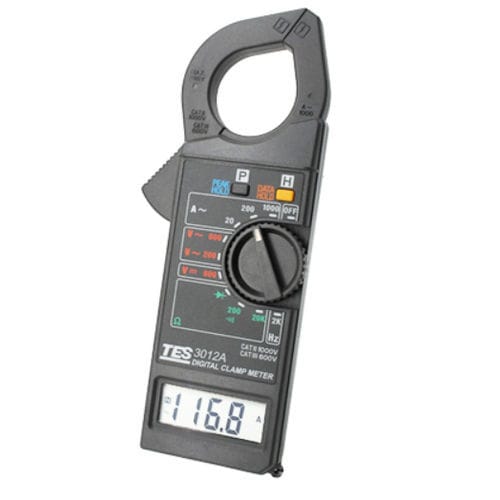

Digital clamp multimeter TES-3012Aportable1000 V1000 A
Add to favorites
Compare this product
Characteristics
- Display
- digital
- Form
- portable
- Max voltage
- 1000 V
- Max current
- 1000 A, 100 A
- Safety rating
- cat III, cat II
- Additional features
- frequency
- Other characteristics
- AC/DC
- Max DC voltage
600 V
- Max AC voltage
600 V
- Max AC current
1,000 A
- Max resistance measure
20 kOhm
- Max frequency measure
2 kHz
- Max DC voltage resolution
1 V
- Max AC voltage resolution
1 V
- Max AC current resolution
1 A
- Max resistance resolution
10 Ohm
- DC voltage precision
0.8 %
- AC voltage precision
1.2 %
- DC current precision
0.8 %
- AC current precision
2 %
- Resistance precision
1 %
- Process temperature
Max.: 40 °C
(104 °F)Min.: 0 °C
(32 °F)- Length
208 mm
(8.19 in)- Width
65 mm
(2.56 in)- Height
31 mm
(1.22 in)- Weight
308 g
(10.86 oz)
Description
• ACA: 20A, 200A, 1000A.
• Peak /Data Hold.
• Frequency Count /Diode Check.
• Continuity Buzzer.
• Low Battery Indication.
