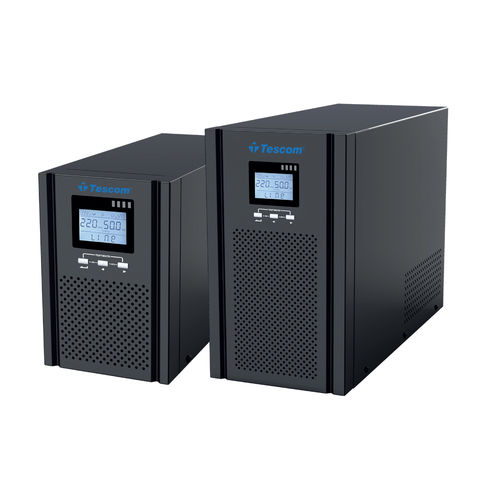

On-line uninterruptible power supply TEOS+ 100

ACwith LCD displayEco mode

TEOS+ 100 Online UPS is an uninterruptible power supply designed with true double conversion technology and DSP (Digital signal processors) controlled processor. Thanks to its plug-and-play feature and silent operation, it is especially preferred for use in home and office applications. Efficiency with Active Power Factor Correction (APFC) feature, flexibility with wide voltage/frequency range is provided. GENERAL SPECIFICATIONS Active power factor correction (APFC), input power factor up to 0.99 Output power factor 0.9 Wide input voltage range (110 V ~ 300 Vac) and frequency range (40 ~ 70 Hz) 50/60Hz frequency conversion Cold start Rear ventilation design and variable speed fan Effective software and hardware protection Quick and stable charging, 90% capacity restored in 4h (standard model UPS) Linear derating in low voltage input reducing battery discharging times Settable delayed start when power is restored Multiple functions settable via LCD: output voltage, EOD, auto-start, bypass mode, ECO mode and frequency conversion mode Multi-platform communications: RS232 (standard), USB / RS485 / SNMP / dry contacts (optional) EPO function, and 12 A charger (2/3 kVA only) (optional)
