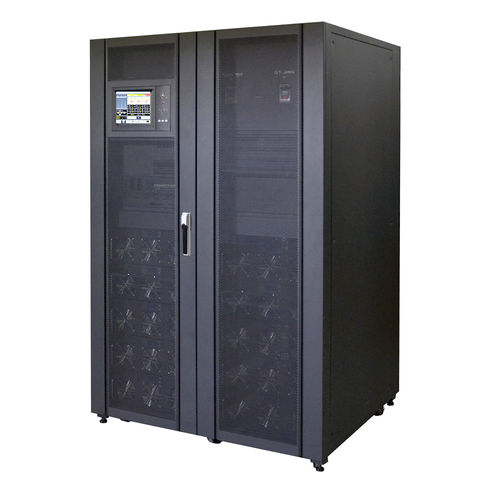

On-line uninterruptible power supply MTI500

parallelthree-phaseAC

MTI500 modular, online UPS ranging from 50kVA to 500kVA is designed to protect any critical load for medium and large data center achieving maximum availability. The MTI500 Modular Ups feature the latest technology of 3 level technology... 500kVA in one cabinet, footprint less than 1.5m², saving valuable room space High power density 50kVA power module in 4U height, easy for capacity expansion High efficiency Advanced 3-level technology quarantees high efficiency operating in double conversion mode up to 96% Intelligent charging management The system intelligently control the whole process of the charging and discharging, effectively improve the life time of the battery. High scalability The system can be configured from 50kVA to 500kVA in one single cabinet, 3 units in parallel for a capacity up to 1500kVA Friendly HMI 10.4” touch color LCD with graphic display, independent LCD for each power module Smart sleep function System can intelligently shutdown some power modules to increase total load rate, achieving higher efficiency
