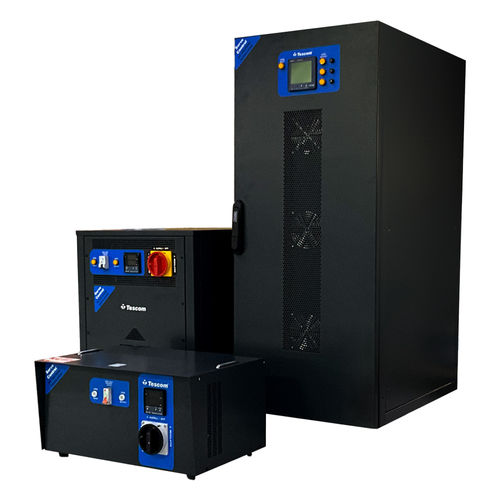

AC voltage regulator TVR 33

three-phaseCEISO

Tescom TVR 33 Series Servo Voltage Regulators provide safe energy for your loads in sites where your mains is irregular or where the power supply voltage is unstable, such as a generator. By keeping the voltage within certain tolerances, it offers full protection against the risk of damage caused by excessive fluctuations in voltage. With separate microprocessor control for each phase, the necessary signals for the desired regulation are transmitted to the dc motor. The DC motor provides movement in the direction of adding or subtracting voltage for regulation on the variac to which it is mechanically connected. This supplied voltage is transferred to the differential auxiliary transformer (booster transformer). As a result, electronically controlled stable voltage is provided in the output voltage against voltage changes. TVR 33 series with high correction speed, fully mechanical and electronic protection are offered in the power range of 10.5-3000KVA with 3 phase input and 3 phase output. GENERAL SPECIFICATIONS 3 phase input 3 phase output Wide power and voltage interval High reliability thanks to Microprocessor and Smart Driver Fast Regulation High efficiency Load transfer to Bypass via pole charge switch Safe and economic usage Overcurrent and overload protection Digitally displayed status, input & output measurements
