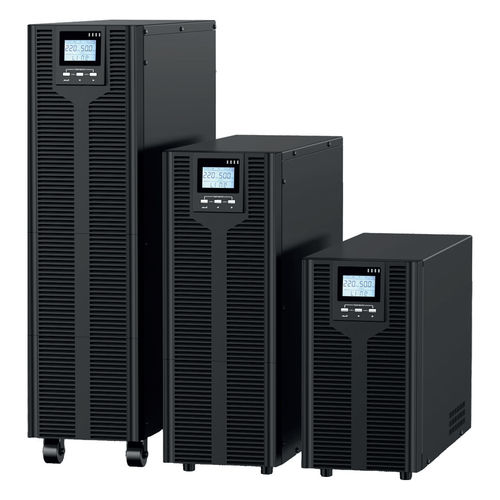

On-line uninterruptible power supply TEOS+ 200

parallelthree-phaseAC

TEOS+ 200 (10-20 kVA) Advanced DSP and 3-Level Technology, High Efficiency, Power Factor 1.0 GENERAL SPECIFICATIONS Advanced DSP and 3-Level technology Output power factor 1.0 Active power factor correction (APFC), input power factor up to 0.99 High efficiency 95% (up to 98% in ECO mode) Advanced digital parallel technology 3:1 to 1:1 model settable Wide input voltage range (190 - 499 Vac) and frequency range (40 - 70Hz) 50 / 60 Hz frequency auto sensing Two modes of frequency conversion: 50Hz input / 60Hz output or 60Hz input / 50Hz output Dual-input design, supporting independent bypass Flexible battery configuration (settable 16 - 20 pcs batteries) Digitally controlled charger High charging current available (Max. 10 A) Charging voltage and current configured by demands Linear debating in low voltage input reducing battery discharging times, extending the service life of battery Intelligent battery management, automatic floating / equalizing charge control, charger dormancy control, increasing battery life by 50% Ability to switch on the UPS with batteries Settable delayed start time when mains power is restored, reducing the impact on power grid or generator Fan speed varies intelligently with temperature, reducing noise and extending its service life Equipped with self-aging function Compact internal layout, miniaturized the complete unit for small footprint LCD+LED display, multi-functional keys operation, friendly human-machine interface
