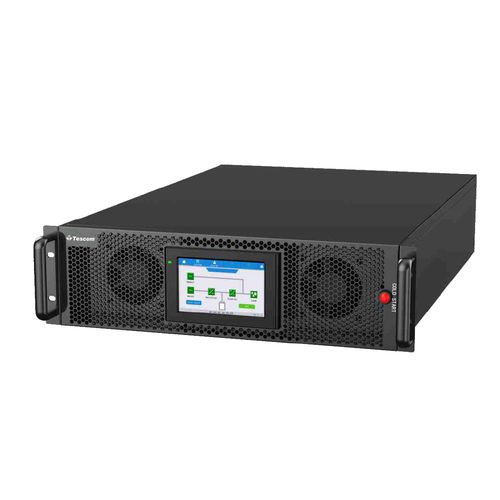

Tescom TEOS+ 300RT (10 - 30 kVA) Uninterruptible Power Supply, 5 Inches LCD Colorful Touchscreen, Output Power Factor (PF) 1.0, DSP Technology
GENERAL SPECIFICATIONS
Advanced dual-core DSP control technology and 3-level technology
Active power factor correction (APFC), input power factorup to 0.99
System efficiency is improved to 95%, energy saving rate is doubled
Output power factor 1.0
Dual input design, supporting independent bypass
Advanced digital and parallel technology, providing higher reliability than single system
Wide input voltage range
50 / 60 Hz auto-sensing frequency 50 / 60 Hz frequency conversion mode
Work efficiency up to 98% in ECO mode
Fan speed varies intelligently with load, reducing noise and extending its service life
Conformal coating technology to make UPS operate in harsh environment for a long time
Flexible battery configuration setting, selectable battery numbers: 32~ 40 pcs
Digitally controlled charger (Max.10 A)
Ability to switch on the UPS by battery in the absence of mains power (Cold start)
Zero switching time for UPS power supply mode when the mains power is unstable, ensuring the output is uninterrupted
Compact internal layout, small footprint
5 inches LCD colorful touch screen, friendly human & machine interface
Powerful background software for parameters configuration and online upgrade
Advanced multi-platform communication for UPS monitoring: RS232,USB,RS485, dry contacts, SNMP card,Wi-Fi card and GPRS card
Linear derating in low voltage input, reducing battery discharging times, extending the service life of battery
