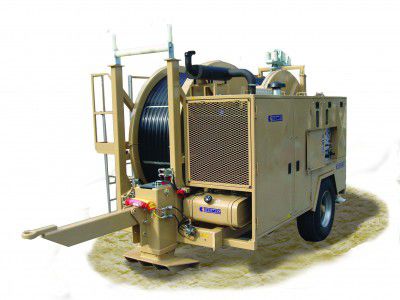

Diesel engine capstan winch AFS618

for cablestraction

The machine is suitable to string one conductor. The bull-wheel grooves are made of wearproof nylon sectors. The machine is completely electronically controlled. Note: The machine is also available with special nylon sectors kit for two bundle conductors up to 43 mm of diameter (ALL080). HYDRAULIC TRANSMISSION Closed hydraulic circuit for stepless speed variation in both rotating directions. This machine is provided with a pull presetting system that maintain the pre-set pulling value (also when the speed is reduced to “0”) by automatically adjusting the operation speed according to the friction and unexpected loads which may occur. CONFIGURATION Negative self-acting hydraulic brake Hydraulic dynamometer with set-point and automatic control of maximum pull Hydraulic oil cooling system Digital meter counter Control instruments for hydraulic system and Diesel engine Rigid axle for towing at max speed of 30 km/h with mechanical parking brake Hydraulic power pack to control 2 drum stands with hydraulic motor or 2 reel winders Growing connection point 2 rear hydraulic stabilizers for levelling and set-up operations 2 front jacks for better stability under work conditions
