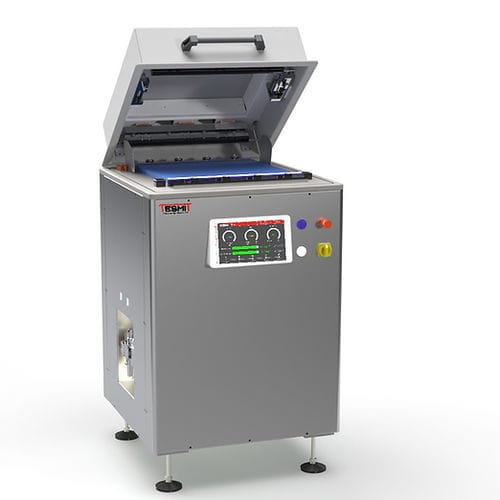

Vacuum sealer SIRIO MED FCH-50M

manualautomaticbag

Chamber vacuum sealer machine for medical and pharmaceutical . Pouch in MAP modified atmosphere packaging Chamber vacuum packaging machine with requirements for packaging medical and pharmaceutical products. Orthopedic prostheses, dental implants, surgical supplies, catheters, laboratory supplies, diagnostic instruments, disposable. The sealing of the bag is carried out by hot sealing using 2 sealing bars thermo-controlled by certified probes (+ / - 1 degree) The insertion and positioning of the product to be sealed will take place manually, the closing of the bell is manual or automatic. At the end of the cycle the bell will automatically open by half the pistons, allowing quick removal of the sealed product. The electronic control of the equipment will take place via a PLC system, with set-up pages for several different work cycles. The equipment will be equipped with a switch for remote assistance and cloud transmission of machine parameters. Furthermore, a system is integrated into it Certified firewall. Industry 4.0 The equipment calibration service complies with the requirements of the UNI CEI EN ISO/IEC 17025 standard and guarantees the traceability of the measurements to the International System. Technical data: • Dimension:L.900 P. 750 H. 1650 mm • Max product dimensions: 500x500xH.250 mm • Sealing bars: Nr.1 Front / Nr. 1 Rear • Maximum sealing temperature: 180 degrees • Pump: 40 mch (internal) silent • Power supply:220V - 2200 WAT • Pneumatic supply:3 - 7 Bar (10mm tube) • Weight:160.00 kg
