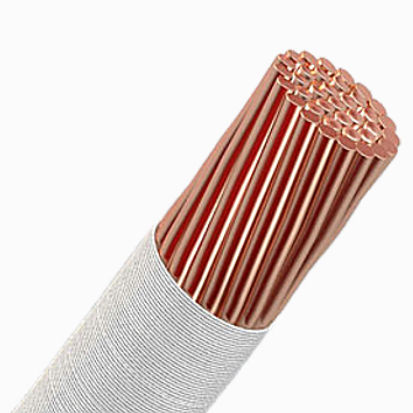

Litz electrical wire

enameledcoppermulti-strand

LITZ WIRE Driver Litz's thread is a enamelled copper wire which may be weldable or non-weldable in Grade 1 (1 coat of enamel) or Grade 2 (2 coats of enamel) Wiring Conductors wired in 7-wire studs and these wired in a perfect wiring formation (7, 19, 37) with a suitable pitch. The formation and number of threads depend on the section and the working frequency thereof. We can also manufacture in square or rectangular shape, as needed. Insulation: According to different materials, according to the temperature and their use Cables made of fine enamelled copper wire. Unit threads from 0.05 mm Ø to 5 mm The choice of the diameter of a single wire is important for the specific application The table below shows the relationship between the recommended single wire diameter and the frequency range It is a special type of wire used in electronics. It is made up of several wires covered with an insulating film, twisted and connected in parallel at their ends. The use of many wires in parallel increases the surface area of the conductive surface and thus reduces the influence of the skin effect *. For them, their applications are very diverse: ​ Electric automobile. Medicine-health (magnetic resonance equipment) Renewable energy Aeronautics / airspace Railway industry Electrical connections ​
