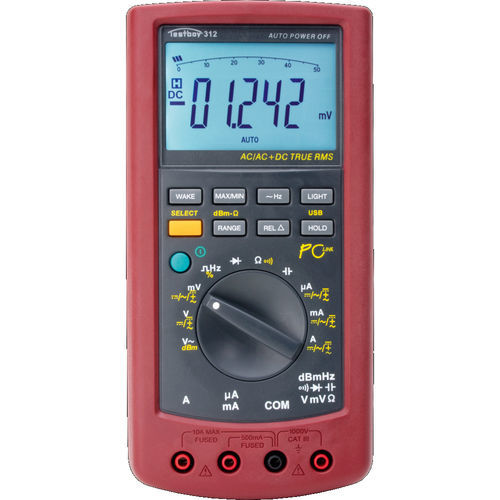

Digital multimeter TESTBOY 312portable1000 Vcat III
Add to favorites
Compare this product
Characteristics
- Display
- digital
- Form
- portable
- Max voltage
- 1000 V
- Safety rating
- cat III
- Additional features
- frequency
- Other characteristics
- true RMS, USB
- Max DC voltage
50 mV, 50 mV, 500 mV, 500 mV, 1,000 mV
- Max AC voltage
50 mV, 50 mV, 500 mV, 500 mV, 1,000 mV
- Max DC current
0.5 A, 5 A, 5 A, 10 A, 500 A
- Max AC current
0.5 mA, 5 mA, 5 mA, 10 mA, 500 mA
- Max resistance measure
Min.: 500 Ohm
Max.: 50,000,000 Ohm
- Max frequency measure
Min.: 5 Hz
Max.: 5,000,000 Hz
- Length
200 mm
(7.87 in)- Width
100 mm
(3.94 in)- Height
40 mm
(1.57 in)- Weight
600 g
(21.16 oz)
Description
The digital multimeter, Testboy 312, is particularly convincing by its high accuracy in measuring. The extremely effective measuring procedure prevents measuring errors in the case of non-sinusoidal or non-linear curves. In addition, it also has important functions, such as relative, Min/Max and frequency measurement and a USB interface, through which all measurement results can be evaluated using Windows software.
How you benefit
• Large LCD with bar chart display
• True RMS
• USB interface
