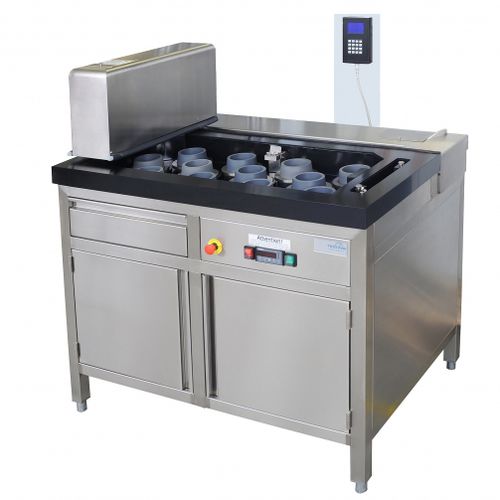

Automated Vicat testing instrument 1.0368

for cement

Computer-controlled Vicat needle apparatus With 12 measuring points EN 196-3 EN 480-2 optional equipment is required* Construction The 12 measuring points (4/4/4) are in a rectangular trough installed, which is into a stainless steel workbench integrated Tests can be performed in air or in water bath with constant temperature (heat exchanger and cooler for constant water temperature included) Programmed test sequences Automatic registration of the beginning and of the end of setting time, as well as of setting plots Weight of plunger and the Vicat needle are an additional 300 g ± 1 g After each penetration the Vicat needle is automatically cleaned Scope of delivery • Base unit as a floor-mounted appliance with the control unit • Standard software for programmable test sequences and for data recording • 12 Vicat moulds (conical hard plastic ring) 70/80 dia. x 40 mm • 12 glass base plates, 120 mm dia. • 12 centerings for Vicat moulds (conical hard plastic ring) 70/80 dia. x 40 mm • 2 pair of cleaning brushes • 1 tee wrench, 1.25 mm • 1 tee wrench, 2 mm • 2 spare glass plates, 120 mm dia. • 2 spare initial-set needles, 1.13 mm dia. • Filter sponge coarse • Filter sponge fine • Serial cable • USB/RS232-Adapter • Power supply Important notes * For standard EN 480-2 the additional weight 1.0366.10, the plunger 1.0366.12 and optionally the extra cooling unit 1.0366.13 for a test temperature of 5°C are required ** For operation is a standard PC or laptop required, which is not included in the scope of delivery Dimensions (wxdxh) = 1000 x 700 x 1140 mm Weight: 195 kg 110-230 V / 50-60 Hz
