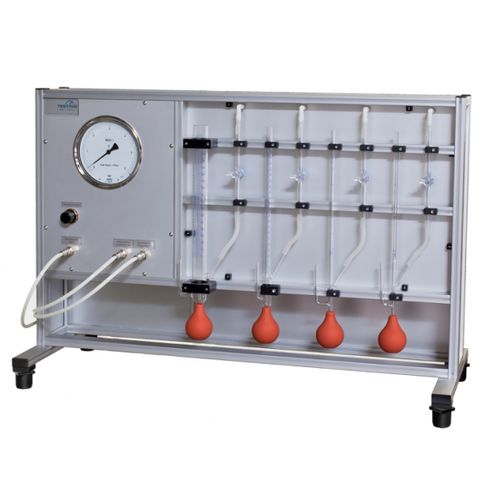

Air permeability tester 2.0331

concrete permeabilityfresh concreteindustrial

For the determination of air/gas permeability of concrete test specimens Acc. to RILEM Cembureau method The specimen is sealed by a surrounding hose having a pressure of 12 bar. Pressuring either through a gas bottle or a compressor Scope of delivery • Control device for air pressure 0 - 6 bar (pressure gauge with connected pressure reducer to adjust the desired test pressure) • Connections for one measuring cell • Standard gauges (bubble flow meters) with 4 measuring ranges 1.5 / 5 / 20 / 160 ml * 5th gauge (bubble counter) with measuring range 50 ml. must be ordered separatly. Measuring cells are accessuaries and must be ordered separately! Dimensions (wxdxh) = 980 x 400 x 675 mm Weight: 25 kg (Without measuring cell)
