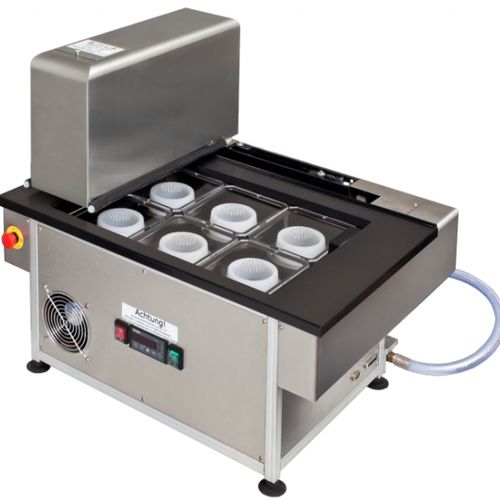

Automated Vicat testing instrument 1.0366.ASTM

Computer-controlled* Vicat needle apparatus With 6 measuring points ASTM C191 method B Construction The six measuring points (2 x 3) are installed in a rectangular trough Tests must be performed in humidity air (>95%) The unit automatically records initinal set time and final set time, as well as of setting plots Weight of plunger and the Vicat needle are an additional 300 g ± 1 g After each penetration the Vicat needle is automatically cleaned Scope of delivery • Base unit as a table model with the control unit and standard software for programmable test sequences and for data recording • 6 Vicat moulds (conical hard plastic ring) 60/70 dia. x 40 mm • 6 glass base plates, 120 mm dia. • 6 centerings for Vicat moulds (conical hard plastic ring) 60/70 dia. x 40 mm • 1 pair of cleaning brushes • 1 tee wrench 1.25 mm • 1 tee wrench 2 mm • 2 spare glass plates, 120 mm dia. • 2 spare initial-set needles, 1.0 mm dia. • Filter sponge coarse • Filter sponge fine • Serial cable • USB/RS232-Adapter • Mains cable • Cover • Humidity display Dimensions (wxdxh) = 700 x 600 x 600 mm Weight: 68 kg 110-230 V / 50-60 Hz
