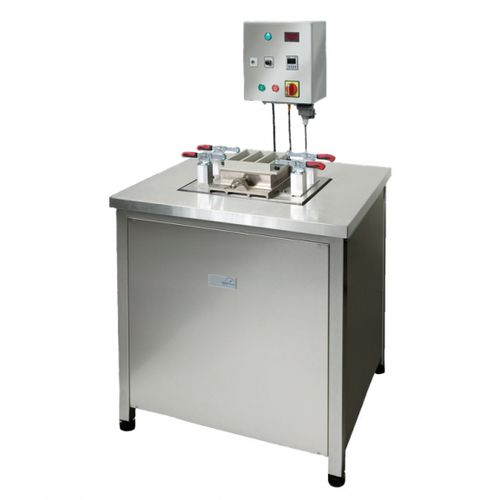

Making mortar vibrating table 1.0220S

EN 196-1 The switch box is mounted on a tripod on the Vibrating table Peak-to-peak value: 0.75 ± 0.05 mm Oscillation frequency: 50 Hz sinusoidal waveform Digital timer Vibrating plate: 400 x 300 mm Fast-action clamping device For fixing one TESTING precision three-gang mould 40.1 x 40 x 160 mm with feeding hopper Note A total vibrating mass of 35.0 +/- 1.5 kg acc. to EN 196-1:2005 can only be guaranteed by utilizing a TESTING precision three-gang mould with feeding hopper Dimensions (wxdxh) = 800 x 530/700 x 850 mm Weight: 230 kg 230 V / 50 Hz
