Magnetic measuring instrument RC2

temperaturespeedelectronic

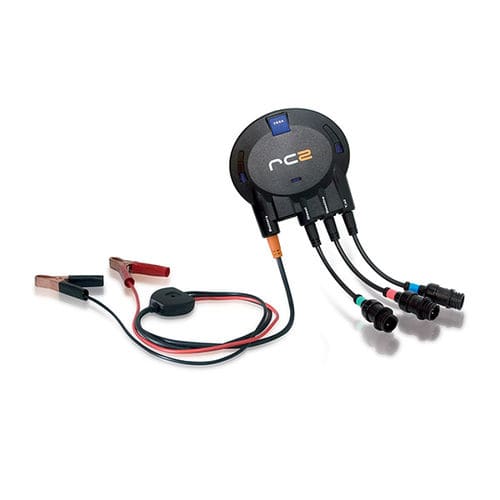

RC2 is the electronic system for measuring engine speed and temperature. Featuring a magnetic case, meaning it can be attached to the bonnet or the side members to run the tests with extreme ease. RC2 features two modes for measuring engine speed: using a microphone and the residual battery capacity signal, or alternatively induction probes and piezo sensors. Both the emission analysis modules and the RC2 and RC3 modules are separate units from the MULTI PEGASO and can communicate with the latter without requiring connection cables. Nonetheless, when the test is complete they can be attached to the trolley with a quick and simple operation for maximum space-saving. PROCESSOR SYSTEM MB90F591 16MHz EXTERNAL POWER SUPPLY 8 ÷ 32 Volt PETROL AND DIESEL DETECTION FROM BATTERY Systems management at 12VDC and 24VDC PETROL ANALOGUE DETECTION Induction pincers DIESEL ANALOGUE DETECTION Piezoelectric pincers ENVIRONMENTAL Operating temperature: -5°C ÷ +40°C Operating moisture: 10% ÷ 80% without condensate Storage temperature: -20°C ÷ +60°C DIMENSIONS 125x130x27 mm WEIGHT 370 g
