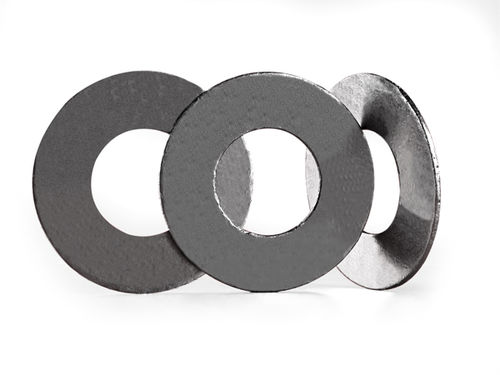

Flat seal 6803Groundmetalexpanded graphite
Add to favorites
Compare this product
Characteristics
- Type
- flat
- Configuration
- round
- Material
- metal, expanded graphite
- Application
- rod, for corrosive products
- Other characteristics
- mechanical
- Temperature limit
Min.: -200 °C
(-328 °F)Max.: 800 °C
(1,472 °F)- Pressure limit
Min.: 0 bar
(0 psi)Max.: 120 bar
(1,740.5 psi)
Description
Texgraf® flat gaskets are obtained from a sheet of flexible expanded graphite into which a tanged foil with a thickness of 0.1 mm made of AISI 316 has been inserted.
They are not subject to thermal shock and so their mechanical properties are extremely stable over time. They are ideal for installation on irregular surfaces because their superior plasticity guarantees a tight seal.
Applications
Ideal for use with high temperatures and pressures, in cases of thermo-mechanical shock, in the presence of saturated or superheated steam and chemically aggressive fluids, with the exception of strongly oxidised agents.
