Differential pressure sensor 4xPDIFF-WS

wirelessfor the aeronautical industrycompact

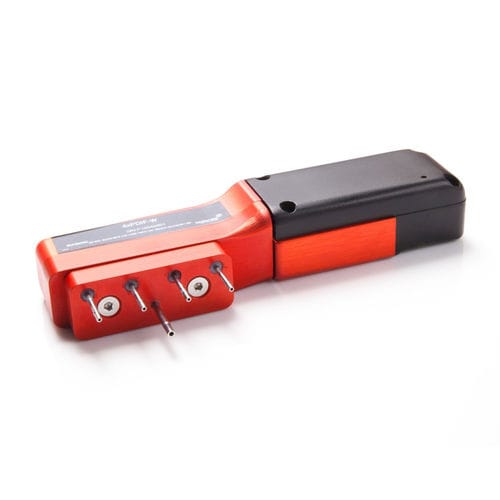

To complement our range of wireless aero pressure scanner we have introduced a NEW 4-channel differential pressure sensor. Being able to pair numerous wireless sensors to our generic GenWM tri-band receiver provides our clients the freedom to monitor areas where wired sensors are difficult to package. Dedicated for aerodynamic developments, the 4xPDIFF-WS wireless aero pressure scanner is available with pressure ranges from -350 to +350 mbar and brings high accuracy in a super-compact housing. The product is packaged with dimensions 101 x 36 x 18 mm. Providing 4 differential pressures with a single reference port, tubes are based on the standard Scanivalve interface (TUBN-040-055) for ease of installation. Powered by an easily replaceable 3.6 V 750 mAh battery and with an operating temperature of 5 to +85°C makes this sensor ideal for embedded testing.
