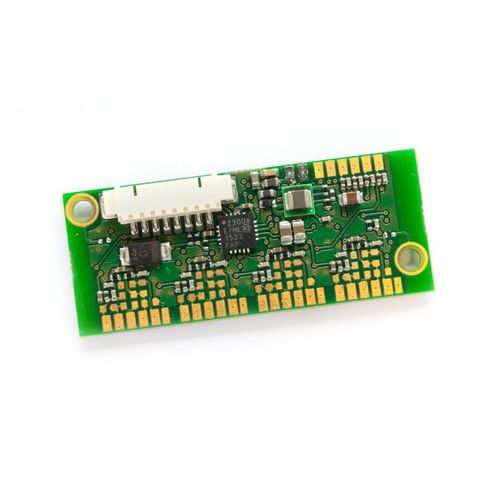

Signal amplifier XN5

programmablefor strain gaugescompact

The XN5 strain gauge amplifier is a 4 channel output version of our popular XN4 strain gauge amplifier. With the XN5 strain gauge amplifier, it’s possible to use a single compact amplifier with 4 separate inputs. Gain and Offset are programmable even if the XN5 strain gauge amplifier is not linked to Strain Gauges. Offset is programmable in mV and Gain in 1/10 (Gain from 70 to 1250). - Offset value from 0 to 5 V. - Output signal can increase or decrease under load. - No need to apply a force to program a Gain. - Temperature compensation is now in time basis, from 2 to 12 hours. - Compensation table values can be edited. - Working temperature is from -20 to +125°C. - Noise reduction. - Most of the amplifier parameters (gain and offset) are programmable by the user via a USB Connect and a laptop.
