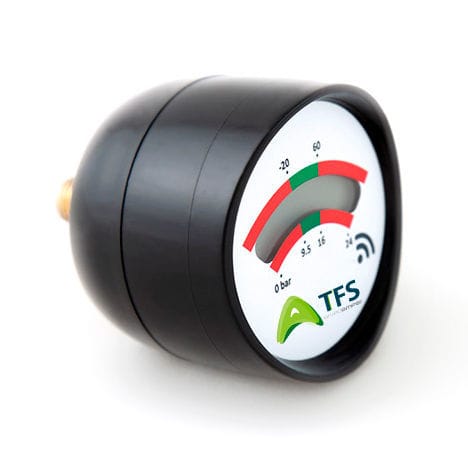

Absolute pressure gauge TFS2399 digitalthreadedNPT 1/8
Add to favorites
Compare this product
Characteristics
- Pressure type
- absolute
- Display
- digital
- Mounting
- threaded
- Process connection
- NPT 1/8
- Technology
- electronic
- Protection level
- IP66
- Applications
- for gas, for liquids, for fire extinguishers
- Other characteristics
- wireless
- Pressure
Min.: 0 bar
(0 psi)Max.: 30 bar
(435.11 psi)- Dial diameter
44 mm
(1.7 in)- Process temperature
Min.: -20 °C
(-4 °F)Max.: 70 °C
(158 °F)
Description
Fire extinguisher: Powder, water, chemicals, automatic extinction...
- M10/100 or 1/8 NPT connections (USA)
- Extractable (optional)
Measurement from 0 to 30 bar / PSI 435
Possibility of measuring any type of gas or liquid
IP 66 protection
Easily installed in any position
Pressure range display
CR2 3V power battery
Autonomy up to 3 years
Intelligent maintenance
Pressure rise and fall sensor
Movement control
Safety ring loss warning
Integrated radio antenna
Modulable radio frequency of 868 Mhz to 915 Mhz
Distances up to 150 m. in semi diaphanous facilities
Informative red led
NFC communication
EC Certificate
UNE-EN3-7-:2004+A1:2008
Weight: 80 g
