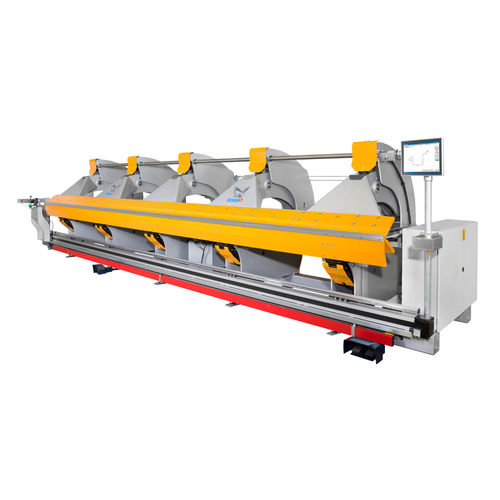

Sheet metal folding machine TZ Series

cuttingprecision

The THALMANN TZ machine range is the single folder offer that serves basic sheet folding operations and can be equipped with various options in order to further improve efficiency, increase the accuracy and scope of folded parts. The maximal bending capacity is up to 3 mm at 400 N/mm². The standard throat dept is 1250 mm and the machines can be from 3.2 up to 12.0 meters long. All TZ machines are designed with the Vertical Force Drive (VFD) technology for maximum clamping power and the optional dynamic crowning system for accuracy and precision. Additional accessories such as hemming and roll-forming or cutting units can be added onto the machines. Increased bending accuracy and additional free bending space Reduction of processing costs and increased capacity utilisation Higher throughputs and increased capacity Faster bending speeds and more flexibility Better part quality and reduction of costs per bended part Lean manufacturing processes and increased safety Access to new markets and competitive advantages Minimal maintenance requirements and longevity of machines Integrated automated solutions and open interfaces VERTICAL FORCE DRIVE (VFD) Evenly distributed ultra-high pressing force is critical to clamp the sheet metal parts for challenging folding cycles such as open or closed hems. The unique design of the rigid C-frames combined with the vertically positioned clamping beam is the basis for this unique Technology not found in any other design of folders around the world. All the force is evenly distributed over the full length of the sheet being bent.
