Anti-vibration weigh module LA66

IP68IP69Kfor hazardous areas

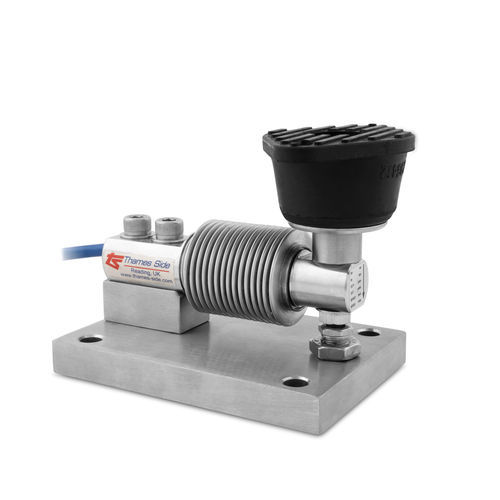

The LA66 is an anti-vibration weighing assembly, designed for use with the T66 bending beam load cell. Its purpose is to reduce the effects of unwanted forces and vibrations on the output signal of the load cell. It consists of a stainless steel base plate mounted underneath the T66 load cell, with a rubber “silent block” pad mounted above the T66, connecting it to the structure being weighed. All metallic hardware is stainless steel. Protection against vertical overload is easily achieved, by setting the adjustable stop mounted in the baseplate. When combined with the T66 load cell (ordered separately) it is an ideal solution for high accuracy weighing of hoppers, tanks and mixers experiencing movement/vibration during operation, especially legal-for-trade applications in harsh environments. ATEX options are also available for hazardous areas. Key features: • Very easy to install • Capacity range 5kg to 300kg • Designed for platform, hopper, tank and mixer scales with vibration • T66 load cell is OIML approved to 3000 divisions (C3) or 6000 divisions (C6) • Fully welded and hermetically sealed stainless steel construction • Protection class IP68/IP69K • Option: Parylene coating for the T66 load cell when used in extremely harsh environments, as well as a version for high temperature use Typical applications: • Platform scales • Weighing with a mixer or agitator • Big bag (FIBC) filling • Belt scales and conveyors • Tank and vessel weighing • Systems using a screw feeder or screw conveyor
