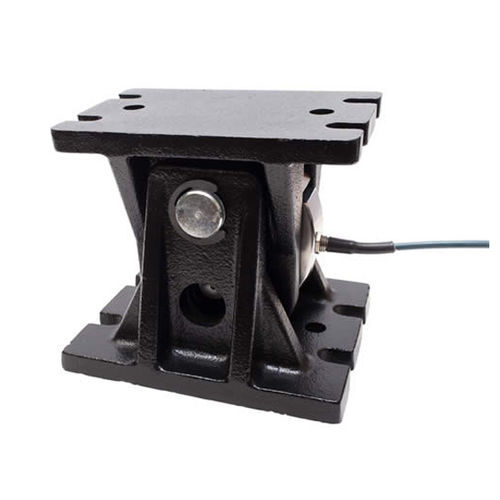

ATEX weigh module T95

IP68high-accuracyIP69K

A unique load cell/mounting accessory combination for applications requiring high accuracy when there is significant movement present, for example the weighing of tanks with mixers or agitators, catalyst vessels, axle weighers and weigh-in motion (WIM) systems. It comprises an OIML approved stainless steel S-type load cell with a robust ‘pendulum’ mounting accessory. Although the weighing assembly is loaded in compression, the load cell is mounted in a ‘pendulum’ and operated in tension. Approved to OIML R60 C3 (3000 divisions) and protected to IP68/IP69K, the stainless steel load cell is ideal for environments requiring wash-down with high pressure, high temperature water such as the food and pharmaceutical industries. With approval to both ATEX and IECEx, the load cell is also perfect for use in hazardous areas. Its special certification allows use in ATEX dust zones 20, 21, 22 and gas zone 2 with no need for safety barriers – which saves our customers a large sum of money. Key features: Capacities 2,000kg, 5,000kg, 10,000kg (load cell and accessory) 20,000kg load cell is available on request for spare parts requirements (20,000kg accessory is discontinued) OIML R60 C3 approved up to 10,000kg (3000 divisions) Simple installation Self-damping design Integral lift-off prevention Fully welded and hermetically sealed stainless steel load cell, protected to IP68/IP69K ATEX approved version for all zones (no need for safety barriers in dust zones 20, 21, 22 or gas zone 2) IECEx approved version for all zones Options: Parylene coating for the load cell when used in extremely harsh environments, high temperature and amplified output (4-20mA) versions
