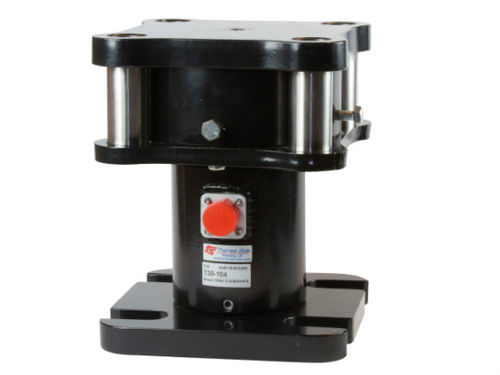

High-accuracy weigh module T30

for tankfor silosfor hopper

The T30 is a high accuracy compression load cell housed in an integral mounting accessory, which is ideal for general weighing of large tanks, silos and vessels, particularly in the cement, waste processing (waste-to-energy or W2E) and minerals industries. The design ensures optimum performance and eliminates many traditional problems that occur during the installation of high capacity weighing systems. The T30 load cell and mounting assembly are supplied as a complete unit locked for transport, ready to install very quickly and simply. The special design readily accommodates structural misalignment and horizontal movement that may occur during thermal expansion and contraction of the weighed structure. Lift-off protection is built into the design and can withstand forces of up to 20% of the load cell capacity, making the unit ideal for exposed installations subject to strong winds. Key features: • Simple, very fast, low cost installation (1 piece design) • High accuracy • Tough, epoxy painted, self-aligning assembly • Sealed to IP67 • Compensation for thermal expansion and contraction • Integral lift-off protection • Replaceable cable via M12 connector for greater flexibility of installation • Wide operating temperature range Typical applications: • Large silo, hopper or tank weighing • Requirement for simple, fast installation
