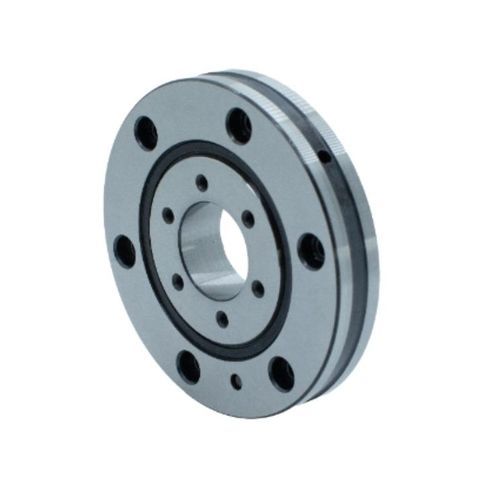

Crossed roller bearing RU Series
axialsteelfor industrial machines

crossed roller bearing
crossed roller bearing
Add to favorites
Compare this product


Characteristics

Rolling element
crossed roller
Configuration
axial
Material
steel
Applications
for industrial machines
Inside diameter

Max.: 350 mm
(13.78 in)

Min.: 20 mm
(0.79 in)

Outside diameter

Max.: 540 mm
(21.26 in)

Min.: 70 mm
(2.76 in)

Width

Max.: 45 mm
(1.772 in)

Min.: 12 mm
(0.472 in)

Description

Crossed roller bearings have various structures: inner ring or outer ring which is divided into two halves, and inner ring and outer ring as a whole with high rigidity. The two-half split structure is fastened together by bolts or rivets at the factory to prevent separation during the transportation and installation. Since the rollers are arranged in a cross, only one set of Cross Roller Rings can withstand loads in all directions, and the rigidity is 3 to 4 times higher than that of conventional models. At the same time, since the inner ring or outer ring of the crossed roller bearing is divided into two structures, the bearing clearance can be adjusted, and even if a preload is applied, high-precision rotational motion can be obtained. Moreover, due to its special structure, it is usually used as a joint bearing in industrial robots. As a professional cross roller bearing supplier, THB-bearings has its own cross roller bearing factory which ensures the quality of our products. We can offer you two types of cross roller bearings including crossed cylindrical roller bearings and crossed tapered roller bearings with high quality. You can click and check more details below. Cross Cylindrical Roller Bearing Component structure: outer ring, inner ring, cylindrical roller, and isolation block. Cylindrical rollers are crossed between V-races, crossed roller bearing is suitable for various high precision and high rigidity applications. The Features of Crossed Roller Bearing 1. High rigidity Flexible rotation Accurate location
