Portable cutting system EX-TRACK® PA-1
oxy-fuelfor stainless steeltube

portable cutting system
portable cutting system
portable cutting system
Add to favorites
Compare this product


Characteristics

Technology
oxy-fuel
Material
for stainless steel
Product handled
tube
Control type
manually-controlled
Associated function
beveling
Applications
for construction machinery
Workpiece loading
manual loading
Other characteristics
mild steel, portable
Tube diameter

Max.: 600 mm
(24 in)

Min.: 108 mm
(4 in)

Overall length

325 mm
(13 in)

Overall width

325 mm
(13 in)

Height

425 mm
(17 in)

Weight

12 kg
(26.46 lb)

Description

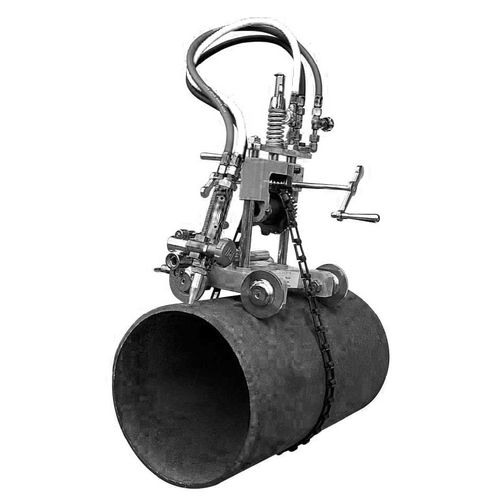

EX-TRACK® PA-1 is a portable cutting system designed for cutting mild steel tubes using an oxy-fuel torch. With this device you can cut pipes up to 600 mm diameter (with included chain) and with wall thicknesses up to 90 mm and manually control the whole cutting process – no electricity needed. PA-1 is a handy cutting tool for use on construction sites, and in workshops, where it is necessary to cut tubes, make a bevel, etc. A flashback arrestor protects the device from damage. After installation of two larger wheels (included in the package), you can even cut tubes with diameters smaller than 108 mm. Just swap the wheels. The clutch leveler allows you to quickly move the device onto the desired cutting spot. Cutting tubes with EX-TRACK® PA-1 is much faster than cutting with a standard grinder and the cut surface is much smoother. The whole device is easy to assemble and it‘s easy to use. Oxy-fuel consumables starter kit and basic assembly tools are included as well.
