Water chiller TC series

industrialcentrifugal compressorstainless steel

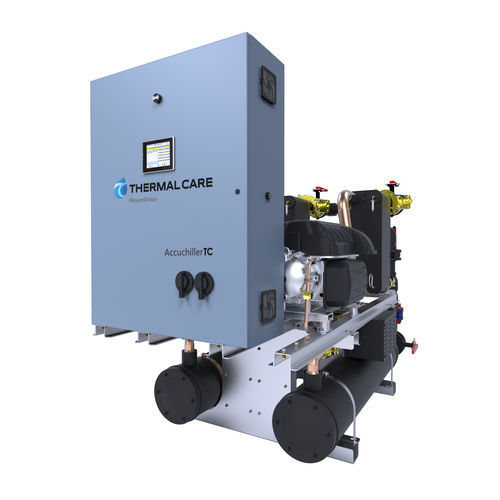

Thermal Care is at the leading edge of process cooling technology. TC Series centrifugal compressor industrial central chillers use revolutionary, frictionless, magnetic bearing Turbocor compressors to deliver optimum chiller performance and part load efficiencies. This translates into the quietest, most reliable, and most energy efficient chillers ever built. Models are available with either single or completely independent dual refrigeration circuits. Overview Water cooled and remote condenser models available Advanced PLC System maintains stable and reliable operation of the chiller Stainless steel brazed plate evaporators for efficiency and corrosion resistance Energy-effficient, variable speed drive, Turbocor centrifugal compressor reduces operating costs vs conventional fixed-speed compressor technologies C-UL 508A listed and labeled industrial control panel Rotary circuit breakers for each compressor Single point connection for electrical hookup at control cabinet Only one major moving part - the compressor impeller which is used to compress gas and provides the highest full load efficiency. In addition, the Turbocor centrifugal compressor design operates at compression ratios as low as 1.2 (discharge pressure/suction pressure) compared to 1.8 or higher for other types of compressors. Lower compression ratios means less energy use. EPA approved low GWP R-513A refrigerant or energy efficient R-134a refrigerant Oil Free Operation Eliminates oil management system and all related maintenance costs No potential oil contamination of refrigerant No compressor failure due to oil contamination
