Probe feedthrough SPG series

for tubesmultiple-elementsplit

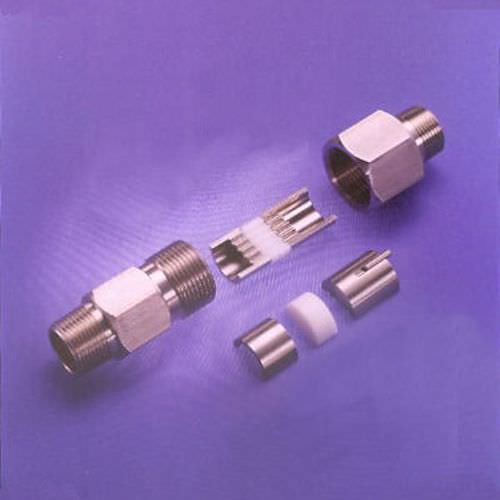

The Conax Technologies SPG range of sealing gland have split internal components for multiple sensors, ideal for assembling when the diameter of the tips/bulbs are larger that the diameters of the elements. Product Information - All wetted parts in Grade 316L (1.4404) stainless steel. - Sealant, follower and seat have a single split to facilitate easy sealant change. - Probe sealants in Teflon® or Viton®, Lava and Grafoil® - Temperature range from -240° to +870°C and Pressure range (@20°C) Vacuum to 690 bar - Optional types of mounting arrangement, screwed, weld-neck or Tri-clover flange (for sanitary/hygienic applications). - Hole sizes from 0.5mm to 1/4" (seals 2 to 11 elements) - For gas or liquid. - Elements are independently adjustable. - Replacement sealents are available to enable repeated use. - The SPG range of sealing glands is manufactured by Conax Technologies.
