Thermocouple temperature probe MDPPt100threadedinsertion
Add to favorites
Compare this product
Characteristics
- Technology
- thermocouple, Pt100
- Mounting
- threaded, insertion, flange, with terminal head
- Applications
- for the pharmaceutical industry
- Other characteristics
- with thermowell
- Temperature
Max.: 250 °C
(482 °F)Min.: -50 °C
(-58 °F)
Description
For temperature measurement on pharmaceutical processes, manufacturing and service plant.

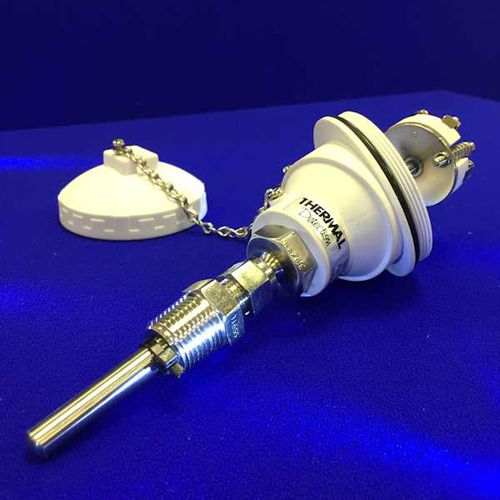

The MDP is a thermowell/pocket with FDA approved polypropylene terminal head, or optional stainless steel head, and a removable spring loaded insert containing the temperature sensor.
The pocket can be specified in a wide range of sizes, with optional process connections.
The terminal head can be specified with temperature transmitter for 4-20mA output, or ceramic terminal block.
RTD format PT100: Class B, A, AA as IEC 60751:2008, also 1/10 DIN
RTD format PT1000: Class B, A
Thermocouple Type T (to IEC 60584-1:2013).
Please use the enquiry form on the datasheet to request information and pricing
