Thermocouple temperature probe LDPHRTDlaboratoryfor hygienic applications
Add to favorites
Compare this product
Characteristics
- Technology
- thermocouple, RTD
- Applications
- laboratory, for hygienic applications, for the food industry, for the pharmaceutical industry, sanitary, for clean rooms
- Temperature
Max.: 250 °C
(482 °F)Min.: -50 °C
(-58 °F)
Description
For temperature measurement on Food, Dairy and Pharmaceutical processes, manufacturing and service plant.

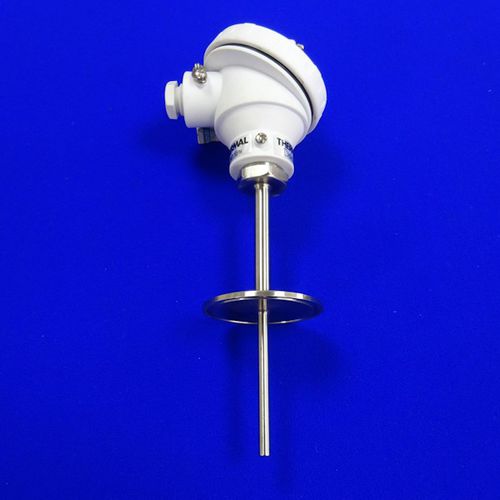

The probe consists of a 316 stainless steel sheath, with a white polypropylene FDA terminal head that can hold a DIN transmitter or terminal block. A 316 stainless steel head is also available.
RTD format PT100: Class B, A, AA as IEC 60751:2008, also 1/10 DIN
RTD format PT1000: Class B, A
Thermocouple Type T class 1 to IEC 60584-1:2013.
Process connection is by means of a sanitary tri-clover flange, which can be specified in a range of specifications and sizes. Allows connection using standard clamps and gaskets
Please use the enquiry form in the datasheet
