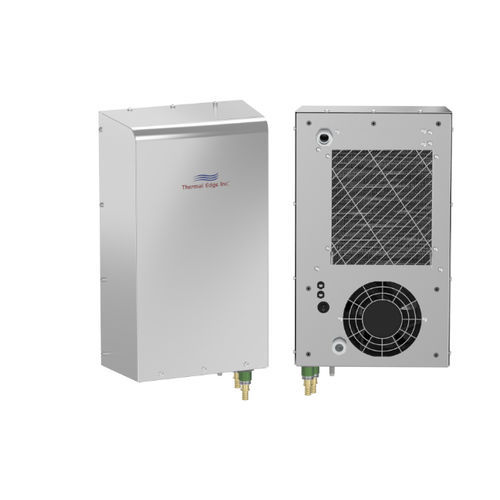

Air/water heat exchanger A2W30 series

outdoorindustrial

When ambient conditions are extreme, Hydro Edge Air-to-Water Heat Exchangers by Thermal Edge provide reliable, efficient, and cost-effective solutions. Ideal for high ambient conditions and tough industrial environments, these air-to-water heat exchangers provide contaminant-free cooling while minimizing energy use and maintenance cost. KEY DESIGN FEATURES Protection from outdoor contaminants with a closed loop design. Constant elimination of condensate Easy maintenance with a filter free design Flexible application with the narrow body style fitting 12” deep enclosures. Eliminates water and corrosion buildup in washdown applications with a sloped roof design and seam welded shroud. Ruggedly designed for manufacturing environments in powder coated steel or corrosion resistant stainless steel Maintains UL Tested NEMA Type 12, 4, and 4X Overall dimensions: 19.7” H x 11.8” W x 5” D Air flow rate: 129 CFM @ 0 Static Pressure Unit weight: 21.4 lbs. OPTIONS: Digital Controller for precise control of enclosure temperature and Solenoid Valve to control water flow, eliminating waste Dry Contact Alarm Open Door Kill Switch Corrosive Environment Package 316 Stainless Steel Housing Enclosure mounted controller Remote Monitoring Options Hazardous Location Units UL Power Cord ACCESSORIES: Water Supply Shutoff Valves
