Isothermal calorimeter RSD™

reactioncost-effectiveexothermic

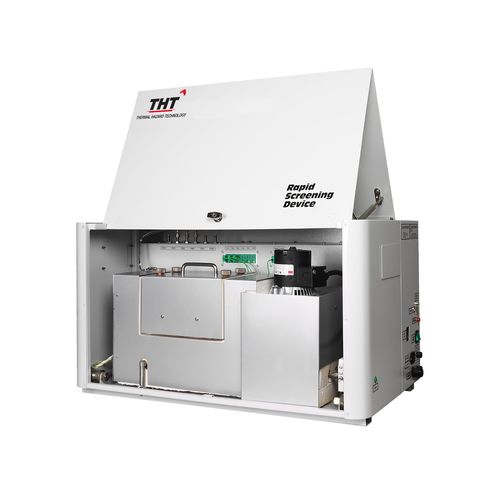

A cost-effective calorimeter for screening samples for exothermic reaction hazards THT RSD™ (Rapid Screening Device) low cost, versatile, and flexible, safety calorimeter for thermal and pressure hazard determination over a wide temperature range. Using temperature ramp methods with isothermal soak options this new system utilises unique technologies to quickly obtain temperature, pressure and heat of reaction data. Overview Features Multiple samples (up to 6 simultaneously) Pressure & temperature differential measurement (simultaneously) 10mg to 100g sample 30 minute test time High sensitivity (detects 1% DTBP in toluene) Thermo-kinetic quantitative data analysis Glass, metal, reusable sample chambers Specification Temperature Range: -140 to 400°C Number of Samples 1 to 6 Pressure Range: 0 to 160 bar Modes of Operation: Isothermal or scanning Scan Rate: 0 - 10°C / min Software: Dedicated Windows based control and data analysis software through USB link to PC PC Requirements: Microsoft Windows USB Port Footprint: 70cm x 43cm x 40cm (width x height x depth)
