Induction brazing machine

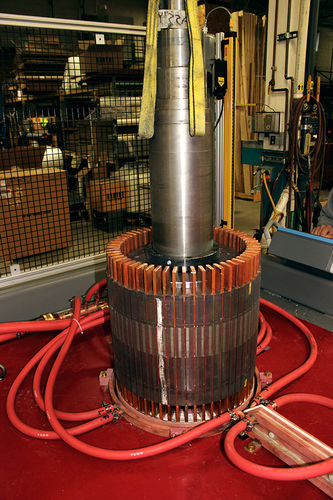

Originally designed for brazing copper ring end caps to large (6 ton) rotor assemblies for stepper motors, this system can be configured to braze a multitude of parts concentric to one another. The Rotor Brazing System is designed for quick change inductor assemblies allowing for a wide range in part diameters of up to 34 in FEATURES Replaces labor intensive flame braze operation Shorter cycle time & reduced silver braze alloy cost 11.0-34.0 in. [27-86cm] part diameter range Up to 12,000 lb. [5443 kg] Quick change inductor assemblies/tooling Operator touch screen HMI interface with temperature control feedback TECH SPECS Power OutputUp to 300 kW Nominal Output Frequency10 kHz Controls PackageDual Color Pyrometer Feedback for Temperature Control Part Diameter Range11 – 34 in. [27 – 86 cm]
