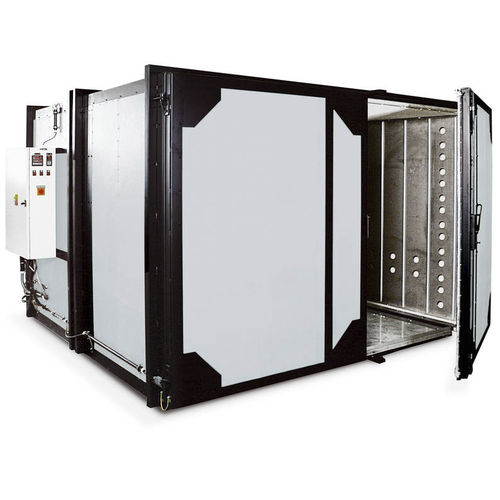

Air circulating furnace KT/A series
chamberheat treatmentelectric

Air circulating furnace - KT/A series - ThermConcept Dr. Fischer - chamber / heat treatment / electric
Air circulating furnace - KT/A series - ThermConcept Dr. Fischer - chamber / heat treatment / electric
Add to favorites
Compare this product


Characteristics

Configuration
chamber
Function
heat treatment
Heat source
electric, gas
Atmosphere
air circulating
Other characteristics
horizontal, vertical, for metallurgy, for the plastics industry
Maximum temperature

250 °C, 450 °C
(482 °F, 842 °F)

Capacity

Max.: 18,500 l
(4,887.18 gal)

Min.: 1,500 l
(396.26 gal)

Description

Air-circulation Chamber Furnaces KT 1500/02/A – KT 18500/04/AT max 250 °C and 450 °CAll furnaces available as electrically heated or indirectly with gasFurnaces for temperatures up to 250 °C and 450 °CHorizontal or vertical air circulationRugged case construction, inner liner made of stainless steelStandard furnace door designed as hinged doorPowerful circulation fans for high air exchange > Excellent temperature uniformity of up to +/- 5 K in accordance with DIN 17052High-quality insulation > Low heat loss, low power consumption

Catalogs

No catalogs are available for this product.

See all of ThermConcept Dr. Fischer‘s catalogs

Other ThermConcept Dr. Fischer products

Furnaces and systems for tempering, annealing, ageing, preheating, drying, and age hardening
