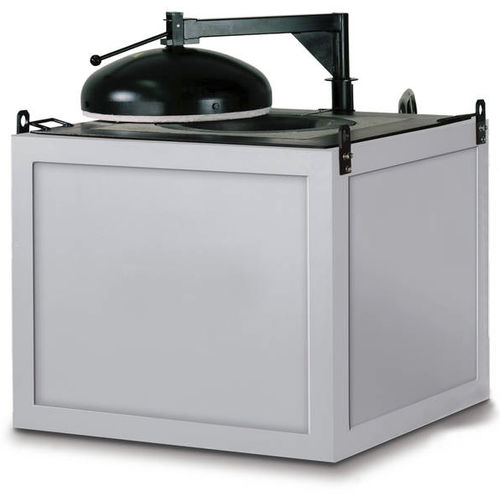

Pit furnace TA series

meltingelectricfor foundry applications

Electrically heated Bale-out FurnacesT max 1100 °C, 1200 °C and 1300 °CRugged casing constructionCompact construction > Easy access to metal bathFriendly working conditions due to excellent thermal insulationLow energy consumption, low operating costs (approx. 0.4 kWh/kg aluminium)High-quality heating elements wound on ceramic tubes > Free heat radiation onto crucible, low energy consumption, longer service life of heating elementsUniform heating of melt and crucible due to heating from 4 sides, superb metal quality, good crucible lifeHeat-resistant cast-iron ring on removable refractory concrete cover protects crucible against mechanical damage and allows easy access for crucible changeEmergency outlet drainCable harness between control panel and furnace protected by flexible metal conduit, providing optimum protection against mechanical damageLow maintenance costs
