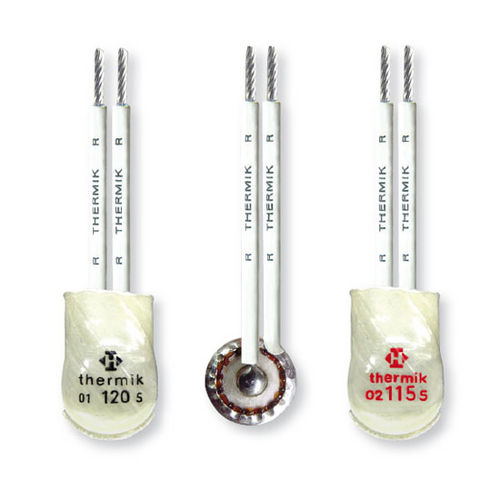

Automatic resetting, with connection leads
Contact type: normally closed
Nominal switching temperature (NST) in steps of 5 °C:
60°C - 200°C
Standard tolerance: ± 5K
Reset temperature range below NST (UL / CSA):
-35 K ± 15 K
Operating voltage AC / DC - available,
values on inquiry: up to 500 V ~
Rated voltage UAC: 250 V (VDE) 277 V (UL)
Rated current AC cos φ = 1.0 (ohmic load) / switching cycles:
2.5 A / 10,000
6.3 A / 3,000
7.5 A / 300
Rated current AC cos φ = 0.6 acc. to IEC 60730-2-9 / switching cycles:
1.6 A / 10,000
Rated current AC cos φ = 0.4 - 0.5 acc. to IEC 60730-2-3 / switching cycles:
1.8 A / 10,000
Max. switching current at 250V ~ / cos φ = 0.4 - 0.5 / switching cycles:
7.2 A / 1,000
Contact bounce time: < 1 ms
Contact resistance (acc. to MIL-Std. R 5757): < 50 mΩ
Impregnation resistance with- or without resin
(acc. to requirements)*: suitable
Vibration proof at 10 60 Hz: 100 m/s²
Pressure stability of housing *: 450 N
Suitable for protection class I or II: suitable
Standard wiring connection: lead wire 0.25 mm² / AWG22
Diameter: 9.0 mm
Heigth: 4.3 mm
Approvals available (according to design): IEC; ENEC, VDE; UL; CSA ; CQC, CMJ
