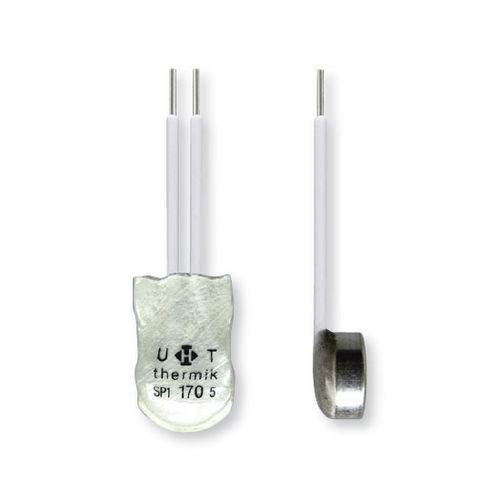

Heating element thermal protector 70 - 180 °C, ø 9 mm | CP1, SP1

Electrical self-hold functionality with connection leads Contact type: normally closed Nominal switching temperature (NST) in steps of 5 °C: 70 °C - 180 °C Standard tolerance: ± 5K Reset temperature range below NST (UL / CSA): depends on NST Operating voltage AC / DC - available, values on inquiry: 100 V up to 250 V Rated voltage UAC: 250 V (VDE) 277 V (UL) Rated current AC cos φ = 1.0 (ohmic load) / switching cycles: 10.0 A / 1,000 Rated current AC cos φ = 0.6 acc. to IEC 60730-2-9 / switching cycles: 6.3A / 1,000 Contact bounce time: < 1 ms Contact resistance (acc. to MIL-Std. R 5757): < 50 mΩ Vibration proof at 10 60 Hz: 100 m/s² Suitable for protection class I or II: suitable Standard wiring connection: lead wire 0.25 mm² / AWG22 Diameter Ød [mm]: 9.0 mm Heigth h [mm]: 4.8 mm Approvals available (according to design): IEC; VDE; UL; CSA
