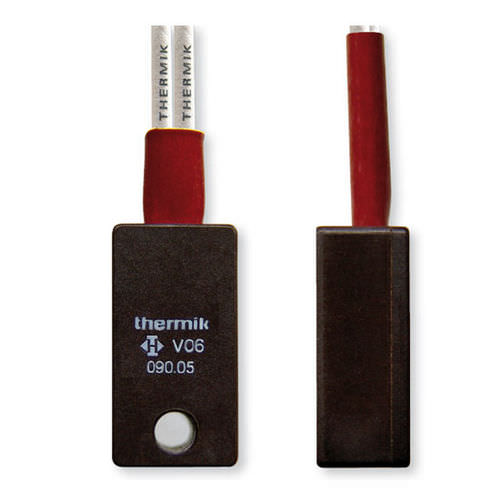

Plastic enclosure thermal protector 70 - 180 °C | V06, V08

Automatic resetting, with mountable housing and double insulation, suitable for protection class II Contact type: normally closed Nominal switching temperature (NST) in steps of 5 °C: 70 °C - 180 °C Standard tolerance: ± 5K Reset temperature range below NST (UL / CSA): depends on NST Operating voltage AC / DC - available, values on inquiry: up to 500 V ~ Rated voltage UAC: 250 V (VDE) Rated current AC cos φ = 1.0 (ohmic load) / switching cycles: 10.0 A / 10,000 25.0 A / 2,000* Rated current AC cos φ = 0.6 acc. to IEC 60730-2-9 / switching cycles: 6.3 A / 10,000 Contact bounce time: < 1 ms Contact resistance (acc. to MIL-Std. R 5757): < 50 mΩ Impregnation resistance with- or without resin (acc. to requirements)*: suitable Vibration proof at 10 60 Hz: 100 m/s² Pressure stability of housing *: 600 N High voltage insulation (not C - versions): 3.75 kV Suitable for protection class I or II: suitable Standard wiring connection: lead wire 0.5 mm² / AWG 20 Heigth: 10.0 mm Length of housing: 26.0 mm / 13.5 mm Wrench size / max. turning moment: 2.5 Nm Approvals available (according to design): IEC; ENEC; VDE; CQC
