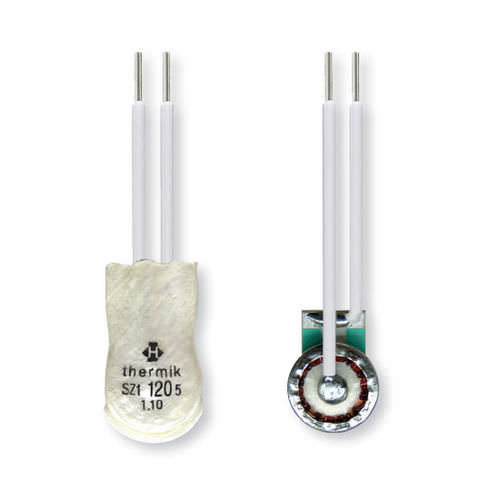

Heating element thermal protector 70 - 160 °C, ø 9 mm | CZ1, SZ1

Automatic resetting, defined current sensitive by an eligible integrated series resistor, with connection leads Contact type: normally closed Nominal switching temperature (NST) in steps of 5 C: 70 C - 160 C Standard tolerance: 5K Reset temperature range below NST (UL / CSA): -35 K 15 K Operating voltage AC / DC - available, values on inquiry: up to 250 V ~ Rated voltage UAC: 250 V (VDE) Rated current AC cos  = 1.0 (ohmic load) / switching cycles: 4.0 A / 3,0000 Rated current AC cos  = 0.6 acc. to IEC 60730-2-9 / switching cycles: 1.6 A / 3,000 Contact bounce time: < 1 ms Contact resistance (acc. to MIL-Std. R 5757): < 50 m Impregnation resistance with- or without resin (acc. to requirements)*: suitable Vibration proof at 10 60 Hz: 100 m/s Suitable for protection class I or II: suitable Standard wiring connection: lead wire 0.25 mm / AWG22 Diameter d [mm]: 9.0 mm Heigth h [mm]: 4.6 mm Approvals available (according to design): IEC; ENEC; VDE
