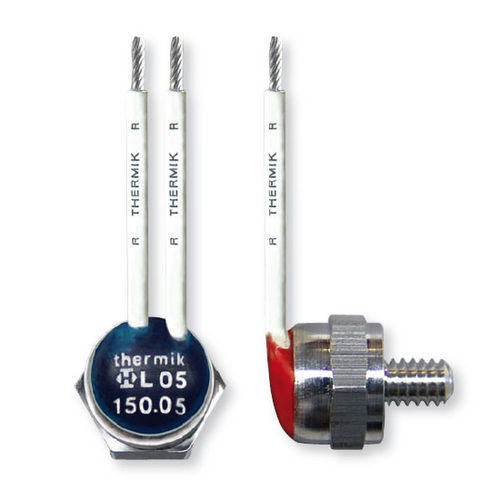

Heating element thermal protector 60 - 160 °C, ø 10.9 mm | L05, L09

Automatic resetting, with threaded stud and connection leads Contact type: normally closed Nominal switching temperature (NST) in steps of 5 C: 60 C - 160 C Standard tolerance: 5K Reset temperature range below NST (UL / CSA): -35 K 15 K Operating voltage AC / DC - available, values on inquiry: up to 500 V ~ Rated voltage UAC: 250 V (VDE) 277 V (UL) Rated current AC cos  = 1.0 (ohmic load) / switching cycles: 6.3 A / 10,000 10.0 A / 3,000 20.0 A / 300 Rated current AC cos  = 0.6 acc. to IEC 60730-2-9 / switching cycles: 4.0 A / 10,000 Rated current AC cos  = 0.4 - 0.5 acc. to IEC 60730-2-3 / switching cycles: 4.6 A / 10,000 Max. switching current at 250V ~ / cos  = 0.4 - 0.5 / switching cycles: 18.4 A / 1,000 Contact bounce time: < 1 ms Contact resistance (acc. to MIL-Std. R 5757): < 50 m Impregnation resistance with- or without resin (acc. to requirements)*: suitable Vibration proof at 10 60 Hz: 100 m/s Pressure stability of housing *: 300 N High voltage insulation (not C - versions): 2kV Suitable for protection class I or II: suitable Standard wiring connection: lead wire 0.5 mm / AWG20 Diameter: 10.9 mm Heigth: 9.0 mm Screw / -length: M6 x 8.0 mm Wrench size / max. turning moment: 13.0 mm / 8 Nm Approvals available (according to design): IEC; ENEC; VDE; UL; CSA; CQC
