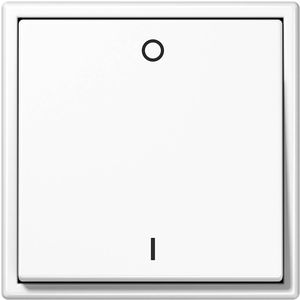

Wireless switch BJ 63x63 BLE

rockersingle-pole2-pole

Energy-harvesting wireless switch for adjusting the (dimming) status of lights and blinds, especially for Busch-Jaeger (63x63mm) designs. The radio technology offers flexible attachment to glass and plasterboard walls using the adhesive pad or screws. • Application/type : Switch • Purpose : Lighting control, Scene control, Shading control • Interface : Bluetooth® Low Energy • Functions : lighting, blinds/shutter • Operating functions : light ON/OFF, blind UP/DOWN • Operating elements : 1 switch, 2 switches, labelling {O/I}, labelling {∆/▼} • Configuration : NFC-based / DMC • Radio technology : Bluetooth® Low Energy (BLE), 2,4 GHz, BLE channel 37 (2402 MHz), channel 38 (2426 MHz) and channel 39 (2480 MHz), Beacon • Data transmission : immediately on using the switch • Operating range humidity : max. 85% rH non-condensing • Power supply : maintenance-free electrodynamic energy generator • Enclosure : PC • Colour : studio white, studio white matt available on request, ivory white, alu silver, black matt available on request • Switch ranges : Busch-Jaeger • Switch range Busch-Jaeger : Busch-axcent®, carat®, future® linear, solo®, (please specify the desired frame when ordering) • Mounting : surface-mounted flat on base using adhesive foil or screws • Delivery content : incl. adhesive foil for mounting
